2-pole open conductor bar system

Werehouse

Up to 100A capacity

Transfer Cars

Tekst

PR2 conductor bar with pvc housing rail and current collector

Wheel guided, spring supported current collector for PCT2

PVC rail with transferguide and power feed option

PR2 conductor bar mounted in track rail with current collector

PR2 for shuttle applications

Reliability is the core of the new PR2 conductor bar system, developed to meet the growing demand for compact conductor bar solutions. Leading manufacturers of shuttle systems require specific solutions to ensure compact, touch‑safe integration at high speeds with consistent contact pressure.

To meet these requirements, the PR2 uses a wheel guided and spring supported current collector that enables fast and efficient material transport while ensuring stable power transfer. This supports intensive usage cycles and delivers maximum uptime in demanding intralogistics operations.

The PR2 system builds on the strengths of our open conductor bar portfolio, offering flexible configurations that can be adapted to any shuttle track layout. For PR2, this includes the use of specially designed funnels that ensure precise collector alignment during transitions between paths, supporting reliable operation in multi‑directional shuttle layouts.

Key Features of the PR2

2‑pole system, up to 100 A
Travel speed up to 500m/min
Continuous copper conductors for minimal resistance points
Wheel guided /spring support current collector

LEARN ABOUT

Continuous Copper Technology with Akapp LongLife

Akapp LongLife is our performance mark for conductor bar systems engineered with continuous copper conductors. This design eliminates mechanical joints and reduces electrical resistance transitions, along with heat build‑up and wear on collector trolleys. The result is a reliable, low‑maintenance power supply with long carbon brush life and smooth, quiet operation.

Learn more about the LongLife advantages

KEY PRODUCT INFORMATION

Product details

Electrical specifications

Rail system capacity

100A 100% DC (Duty Cycle), 125A 80% DC

Rated current collector trolley

Max 35A at 100% Duty cycle

Norminal voltage with protective earth (PE)

Max 600V AC

Norminal voltage without protective earth (PE)

Max 48V AC/DC

Number of poles

Assignment

2 phases, 1 phase + PE, 1 phase + zero

Conductor material

Copper

Mechanical specifications

Max travel speed

500m/min, 30km/h

Direction of travel

Two- way

Gap between the poles

15.2mm

Suspention distance (between mounting brackets)

800mm

System dimensions

Max. System length

130meters

Power rails

Max 4000mm standard rail length

85mm to 3970mm on request

Minimum track length

253mm total length - 199mm usable length

External dimensions

36.1/39.5 x 98mm

Operating conditions

Temperatuur range

-30 to 60°C

Max operating temperature difference

Depending on the track layout

Max. relative humidity

95%

Installation environment

Indoors

Protection class

IP2XB

Tolerances

Conductor bars

Horizontal (X) ±3mm

Vertical (Y) ±1mm

PCT current collector operating tolerances:

Horizontal (X) ±5mm

Vertical (Y) ±5mm

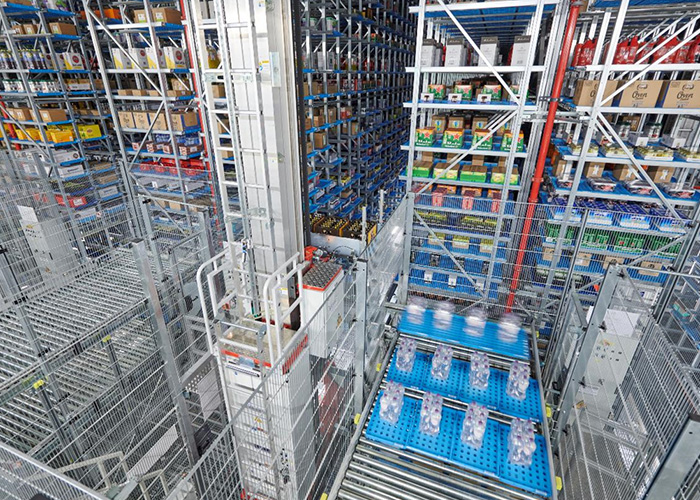

Shuttle system operating in intralogistics with horizontal transport paths

Shuttle Systems

Shuttle systems are the driving force behind modern intralogistics. They deliver ultra-fast storage and order picking, maximize space utilization, and offer a flexible, scalable design that grows with your business. With high reliability and 24/7 availability, shuttles ensure a continuous and efficient material flow—ideal for e-commerce, production environments, and fulfillment operations that demand top performance.

As shuttles become faster, lighter, and more compact, the new AKAPP PR2 conductor bar system provides a highly efficient, low-profile power supply that perfectly meets the requirements of next-generation shuttle technology.

Mini-load ‘Light’ Cranes

Mini-load ‘light’ cranes play a vital role in modern intralogistics, enabling fast and automated storage and retrieval of small parts with outstanding precision and space efficiency. As these machines become faster, more compact, and significantly lighter, the need for equally efficient and lightweight power supply solutions continues to rise.

AKAPP’s 2-pole PR2 conductor bar system supports these developments with a compact and reliable power supply specifically suited to new-generation mini-load cranes. Its slim profile integrates seamlessly into narrow crane structures, ensuring stable and efficient power transmission.

Automated transfer car powered by conductor rail in a warehouse transport

Transfer Cars

Transfer cars play an important role in modern intralogistics, enabling fast and reliable cross-aisle transport to keep material flows running efficiently. As these vehicles become increasingly compact and lightweight, a smart, low-profile power supply is essential.

Because transfer cars operate with frequent starts, stops, and lateral movements, a conductor bar system such as PR2 offers a stable and space-efficient power supply that supports continuous operation. Its compact profile ensures reliable power transmission even in installations with very limited mounting space.

When additional IP protection is required, we recommend using Akapp Multiconductor systems.
